| Brand | ASUS |
| CPU Socket | Quad-Core SoC |
| RAM Memory Technology | DDR3 |
| Memory Speed | 1.8 GHz |
| Series | Tinker Board S |
| CPU Model | Rockchip RK3288 |
| Memory Storage Capacity | 2 GB |
| RAM Memory Maximum Size | 2 GB |
| Memory Slots Available | 1 |
| Wireless Type | Bluetooth, 802.11a/b/g/n/ac |

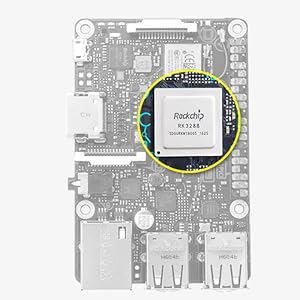

- High performance Quad-core ARM SoC up to 1. 8GHz with 2GB RAM- The Tinker Board S features the Rockchip RK3288 SoC and Mali - T764 GPU along with 2GB of Dual Channel DDR3 memory and 16GB of fast & durable eMMC onboard storage

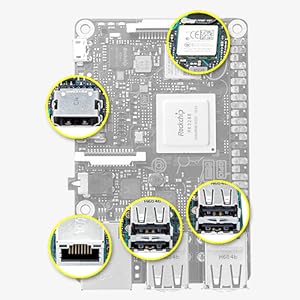

- Non shared GB LAN & USB, shielded Wi-Fi & BT with upgradable antenna support – Tinker Board S features a high speed Non shared GB LAN port for true Gigabit Class networking throughput along with 4 non shared USB 2. 0 Ports. It also features onboard shielded Wi-Fi & Bluetooth for robust IoT & Network connectivity
- Highly compatible PCB & topology –leveraging industry standard PCB & topology dimensions along with IO and connection placement, Tinker Board S offer extensive compatibility with Sbc accessories & chassis.
- Hd & UHD video support and HD Audio– Tinker Board S supports 192/24bit HD Audio playback with automatic Audio jack detection as well as accelerated HD & UHD ( 4K ) video playback and supports HDMI CEC for seamless power on & off configurations
- DIY Design – Tinker Board S features multiple DIY use features including a color coded enhanced GPIO header with dual mode I2S, silkscreened PCB, onboard power on pin
From the manufacturer
ASUS Tinker Board S
Tinker Board S is a single-board computer (SBC) that offers greater durability, better stability, and an overall improved user experience for DIY enthusiasts and makers everywhere.
- Onboard 16GB eMMC storage to enhance performance and stability, plus a microSD slot for greater flexibility
- Low-voltage input detection to avoid power issue and ensure system stability if using a non-qualified power supply
- HDMI-CEC-ready for complete video entertainment, allowing users to command both Tinker Board S and a TV with a single remote control
- Audio jack plug-in detection and auto-switch to 3.5mm audio jack from other interfaces
- Onboard power-on pin for makers giving more freedom when bringing their ideas to life.
- Enhanced I2S pin with Slave mode and an improved software API for better compatibility
Performance
Functionality
HD Audio
Maker Friendly
Features
 |
 |
 |
|---|---|---|
Power SupplyThe Tinker Board S requires 5V/2~3A power via the micro-USB port. The exact amount of current (mA) the Tinker Board S requires will depend on what's connected to it. For general use, a 2A power supply from a reputable retailer will provide ample power to run your tinker board. Typically, Tinker Board S uses between 700 to 1000mA, depending on which peripherals are connected. It may use as little as 500mA when no peripherals are attached. Maximum power for the Tinker Board S is 1A. If you need to connect a USB device to bring power requirements above 0.5A, then you must connect to it via an externally powered USB hub. | USBThe Tinker Board S is equipped with four USB 2.0 ports. These are connected to the GL852G USB Hub from the upstream USB port via the RK3288. The USB ports enable the attachment of peripherals such as keyboards, mice and webcams. This provides the board with additional functionality. There are some differences between the USB hardware on the Tinker Board S and the USB hardware on desktop computers, laptops and tablets. The USB host port inside the Tinker Board S is for power supply only, RK3288, was originally intended to be used in the mobile market, e.g. the single USB port on a phone for connection to a PC, or to a single device. In essence, the OTG hardware is simpler than the equivalent hardware on a PC. OTG typically supports communication to all types of USB devices, but to provide an adequate level of functionality for most of the USB devices that one might plug into a tinker board, the system software has to do more work. | GPIOOne powerful feature of the Tinker Board S is the row of available GPIO (general purpose input/output) pins along the edge of the board. These pins are a physical interface between the Tinker Board S and the outside world. At the simplest level, you can think of them as switches that can be turned on or off. Of the 40 pins, 28 are GPIO pins (shared with SPI/UART/I2C pins). The Tinker Board S is equipped with one SPI bus that offers two chip selects. The SPI bus is available on the onboard 40-pin header. |
Product Description
Tinker Board S is an Sbc designed for hobbyists, makers, gamers and IoT enthusiast. It features a quad-core 1. 8GHz SoC, 2GB RAM, 16GB eMMC storage, non-shared GB LAN, Wi-Fi with upgradable antenna support and color coded GPIO connectivity. The PCB and topology leverages industry standard dimensions allowing for extensive compatibility with a wide range of accessories and chassis.
----------------------------
